Monitoring Elpro – Networking and monitoring –
A Good Connection

Cleanroom technology cannot do without metrological monitoring facilities. Numerous contamination-sensitive technologies in the pharmaceutical industry, in the medical sector, in the electrical industry, in research and development, and increasingly in the supplier industry are confronted with the high demands on the cleanliness of manufacturing environments. On the other hand, safety aspects in pharmaceutics and medicine have a great importance, for instance in the manufacturing and handling of cytostatics.

For all these application areas the measuring with air particle counters is an essential part of any quality assurance system for testing the intactness of filters. The key guidelines for the testing of clean areas include: VDI 2083, US Federal Standard 209E, DIN EN ISO14644, DIN 1946, DIN 12950 / 12980, and the FDA and GMP guidelines.

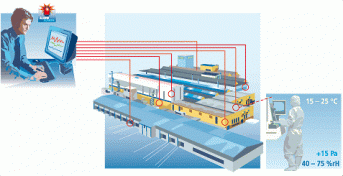

The connection between the particle counting system PCSS air and the data logger Ecolog Net provides a sophisticated monitoring system, which can be supplemented by temperature and humidity sensors.


Markus Klotz GmbH

Is it difficult to operate a centralized monitoring system?

No, it isn’t, because we support you during every single work procedure: needs assessment and optimum selection of data logger and sensors; the design of the network and alarm configuration including the installation of sensors and equipment; the initial operation of the software and the logger as well as testing the complete system; training the personnel and providing support for operation and maintenance of the system.

Markus Klotz GmbH

The result?

A Central Monitoring System which you understand. Easy to operate and reliable. Contact us and join the many companies that rely on the ELPRO system. They include companies from the pharmaceutical or food sector, research labs and hospitals, institutes, manufacturing facilities and warehouses (reference lists upon request). Make monitoring and documentation of your important data easier –the ELPRO Central Monitoring System will give you fast and easy access to your measured data on any PC.

Markus Klotz GmbH

ECOLOG-NET Network-compatible datalogger




ECOLOG-NET
Network-compatible datalogger

ECOLOG-NET Network-compatible datalogger

Ecolog-Net network loggers are ideal for the logging and documentation of temperature, air humidity, particle concentration and pressure difference. The datalogger logs the data tamper-proof in the internal memory. The dataloggers can be operated or queried from any computer via the available LAN or WLAN network, or via independent Ethernet networks.



Alarm and threshold values are conveniently monitored, deviations are recorded and transmitted user-specific. Of course, provided that user approval has been given.

Markus Klotz GmbH

Areas of application:

Warehouse, cold storage house, chill rooms for pharmaceutical products, refrigerator cabinets and storage rooms for foodstuffs, museums and galleries, technical processes, air-conditioned rooms

Markus Klotz GmbH

Specifications:

LAN / WLAN with TCP/IP protocol, USB connector for local communication, large data memory with 64,000 measured values, power supply for the LAN network is required, PoE (power over Ethernet) or WLAN possible, depending on model automatic data backup or via activatable emergency power supply. Logger interval, alarm thresholds and all required settings possible on-site.

Markus Klotz GmbH

Technical Specifications:

  • Device: 4-8 channel datalogger
  • Measured values: temperature, air humidity and signal standard 4-20mA
  • Interfaces: Ethernet LAN, WLAN, USB
  • Measured value memory: 64,000
  • Measured value memory: 64,000
  • Measured value memory: 64,000
  • Measured value memory: 64,000



elproLOG Monitoring Software




elproLOG
Monitoring Software

elproLOG Monitoring Software

Optimize your workflow and don’t waste time having to go to each datalogger to download the measured values. Monitor and analyze cleanrooms, temperatures, air humidity, CO2 concentration or pressure difference conveniently from any PC in your company. Of course, in compliance with FDA 21 CFR Part 11, GLP, GMP and GAMP4.



The software for central monitoring includes various program packages that complement one another nicely. The required programs elproLOG Analyze, elproLOG Config, and the elproLOG Monitor for continuous actual value display and alarm can be upgraded with the user administration elproLOG User and the event database elproLOG Event.

Markus Klotz GmbH

System requirements:

  • Administrator rights for software installation is required.
  • CPU: Pentium 1.5 GHz
  • Operating system: Windows 2000 SP4/XP
  • Internal memory: 512 Mbyte
  • Hard disk memory: 150 Gbyte
  • Interfaces: LAN, USB, COM, depending on device used
  • In compliance with: FDA CFR21Part11, GxP, GAMP4
