TCC

Particle counter TCC with standpipe

The particle counter TCC with stainless steel standpipe is particularly used as monitoring system in the drinking water area. The system can evaluate three freely selectable particle sizes. For each channel threshold values can be set which monitor the degree of pollution. With the help of the interface RS 232 or the current interface 4-20 mA the devices can be connected with a central evaluation unit. The flow is kept constant with the help of an ascending pipe. By setting the measuring time at the TCC the particle number can be detected in dependence of the volume.

Optional: Alternatively to the standpipe it is also possible to use a pressure control valve for a constant flow. The pressure range at the input may be 1-10 bar.

Markus Klotz GmbH

Areas of application:

Drinking water control, monitoring of cleaning baths, cleaning facilities and production facilities for the production of liquids, online measurement during the blowing off of mechanical components

Areas of application particle counter TCC
Areas of application particle counter TCC
Areas of application particle counter TCC

Markus Klotz GmbH

Technical Specifications:

  • Sensor / Range / Concentration: LDS 30/30 / 0.9-139μm / 120,000 particles/ml
  • Measuring Value Readout/Software: Display, Current 0-20mA / 4-20mA, RS 232, Option: CAN-, Profi-Bus
  • Channels: SW-CA: max. 3 freely selectable channels
  • Power Supply: 18-36 VDC, max. 10W

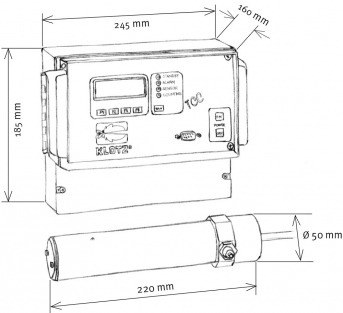

  • Dimensions (h x w x d): 185 x 245 x 120 mm
  • Weight: 2 kg

Markus Klotz GmbH

Accessories
