Software for Particle measuring systems for oils




...for particle counter Syringe®

SW-PE for particle counter Syringe® The SW-PE program lets you carry out measurements and test series with the particle counter Syringe®. Up to 256 freely selectable particle sizes can be measured. Evaluation is cumulative or distributive according to particle numbers or according to volume and bulk. Mean value determination, protocol printouts as well as table displays possible. A highly flexible export to Excel for further evaluation and displays is also possible. Various calibration possibilities. As an option there is a sample changer (rotary plate) available for automatic measuring of up to 20 cups. The SW-CA Software was specifically developed for the pharmaceutical sector.

Particel counter Syringe®


SW-CA for particle counter Syringe®
The SW-CA program was specifically developed for the pharmaceutical industry. It lets you carry out and evaluate measurements according to the USP standard with the particle counter Syringe®. Furthermore, customized measurements and test series are possible. The evaluation can either be related to a volume or alternatively to a weighed sample. It is also possible to evaluate measurements made with diluted solutions. Protocol printouts as well as table displays possible. SW-CA Version 2: Batch evaluation also possible (please ask for details) Various calibration possibilities.

Markus Klotz GmbH

...for particle counter PZG-4

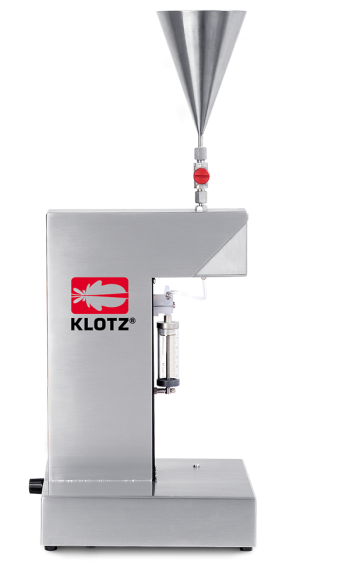

Particel counter PZG-4

SW-AQ for particle counter PZG-4

The SW-AQ program lets you carry out measurements with the PZG-4 sample feeder. It is closely related to the SW-PE and SW-TA software. Up to 256 freely selectable particle sizes can be measured. Evaluation is possible cumulative or distributive, according to particle number or according to volume or bulk. Mean value determination, protocol printout as well as table displays possible. The measuring and flushing volume can be given in multiples of 10 ml since with each pump stroke exactly 10ml liquid is transported. A highly flexible export to Excel for further evaluations and displays is also possible. Options not required can be switched off. Calibration, resolution determination etc. possible.



SW-OI for particle counter PZG-4

SW-OI program lets you carry out measurements with the PZG-4 sample feeder. It is especially designed for measurements of oils. Evaluations possible according to ISO 4406, ISO (NIST) and NAS. Mean value determination, protocol printout as well as table displays possible. The measuring and flushing volume can be given in multiples of 10 ml since with each pump stroke exactly 10ml liquid is transported. A highly flexible export to Excel for further evaluations and displays is also possible.

Markus Klotz GmbH

...for measuring cards

SW - TF timed measurement for measuring card

The SW-TF program lets you carry out manual and time-controlled measurements with the PCC measuring card with selectable measuring and cycle time. Evaluation either according to diameter or volume possible. For further displays and evaluations there is a configurable Excel export available.

SW - DS for 2 measuring cards

The SW-DS program allows measuring value recording of 2 PCC measuring cards/e.g. for before/after filter measurements. In addition an analogue value recording of up to 5 sensors is supported (National Instruments-Module). Measurements with a selectable measuring and cycle time is possible. Evaluation allows graphical, tabular as well as chronological overviews. For further evaluations there is a configurable Excel export.

Markus Klotz GmbH

...for oils particle counter Abakus® mobil fluid

Log and Show 3.3 for oils particle counter Abakus® mobil fluid

The Log and Show (LAS) 3.3 program reads the data of the measuring value memory of the Abakus® oil particle counter as well as lets you carry out measurements directly from the PC. Furthermore, the received data can be displayed, printed out and further processed.

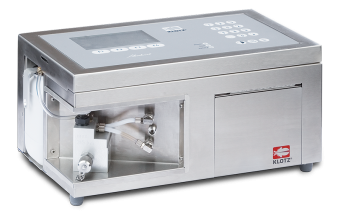

Abakus® mobil fluid


For further processing there is a configurable Excel export available. It is possible to get graphical, tabular and also chronological overviews. The ISO and NAS standards have already been included in the program (as well as ISO 4406 (1991) and the recent ISO 4406 (1999)). Measurements carried out according to former standards can be evaluated according to more recent standards.
